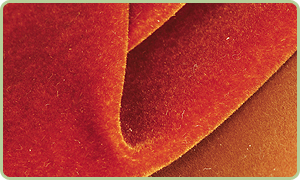

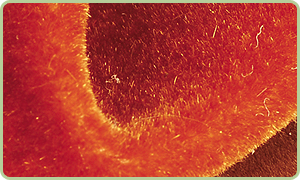

Kinds of flocking pile fabrics - Whole pile , - Sectional(Designed)pile

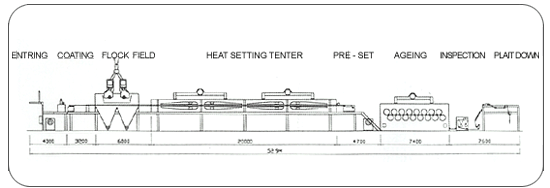

▶ Process of flocking products
Binder coating to fabric feeding pile - Residual pile colection - Pre-dry
- Heat setting - Brushing(Residual pile collecting) - Inspection - Packing

▶ Length of pile to be used
- 0.2mm ~ 10mm

▶ Kinds of pile - RAYON( 0.3 ~ 1.5mm for garment)
- NYLON( 0.5 ~ 1.0mm for garment & shoes, 2.0 ~ 10mm for carsheet etc)

▶ Kinds of binder Softening & anti-washable binder to be used
- Emulsion type
- Solvent type

▶ Applicable products for flocking pile fabric :

- Garment : Winder clothes, Jacket, Dress, Vest, Sports ware
- Shoes : Boots, Sandal, Slipper
- Furniture : Carpet, Curtain, Wall clothe, Table cover
- Others : Car sheet, Belt, Case for jewelry, Book cover etc.

General main specification
Roll width : 1800mm
Working width : 1600mm
Machine speed : 5~25 M/min
Working speed : MAX 30 M/min
Driving method : AC motor inverter control
Electric power : 220/380V x 50/60Hz x 150kw
Dimension : W:6m x H:6.5m x L:54m ( Pile room Max H:9.5m)
